When designing a PCB, it is common practice to default go for the same surface finish used in previous projects, without thoroughly analyzing whether it is the most suitable option for the new design. However, the surface finish is not a secondary element: it directly affects solderability, joint reliability, storage performance, and the overall product cost.
Factors such as component packaging (SMD, PTH, or mixed), pad size and pitch, the number of assembled sides, expected storage time, environmental conditions, and the need for multiple reflow cycles are key aspects that must be considered from the design phase.
There is no universally suitable surface finish for all applications. Typically, the decisive factors when it comes to selecting the most suitable finish is the end application, the assembly process and the design of the circuit board itself. Therefore, surface finish selection should be approached as an engineering decision rather than a default choice based solely on previous experience.
What is the function of surface finish?
The surface finish primarily fulfills two functions:
1. Protecting copper against oxidation from PCB fabrication until assembly.
2. Providing a surface compatible with soldering and assembly processes.
Additionally, in certain applications, the surface finish may serve extra functions such as:
- Mechanical wear resistance (contact areas or connectors).
- Electrical stability in high-frequency or RF applications.
- Long-term reliability in harsh environments.
An incorrect selection may lead to assembly defects, premature field failures, or unnecessary cost increases due to rework and scrap.
What factors influence the choice of surface finishes?
Component type and layout
The type of components used (SMD, PTH, or mixed) and their placement on the PCB directly influence the surface finish choice. The presence of components on both sides or mixed technologies may require multiple reflow processes, which excludes finishes sensitive to thermal aging. Some finishes are not recommended for fine-pitch components or advanced packages due to planarity or assembly stability limitations.
Number of reflow cycles
Each thermal cycle progressively degrades the surface finish. This effect is especially relevant in double-sided assembly, rework, or sequential processes.
- HASL and ENIG withstand multiple reflow cycles without significant solderability degradation.
- ENEPIG stands out for its excellent metallurgical stability even after several thermal cycles.
- OSP, Immersion Silver, and Immersion Tin are highly sensitive to the number of cycles and are recommended only for simple single-pass processes or up to two cycles, taking into consideration storage time, conditions, and strict control of time between processes.
Planarity requirements
Surface planarity is critical in high-density designs such as BGA, QFN, or fine-pitch packages. A non-coplanar surface may cause solder bridges, cold joints, or intermittent failures.
- HASL (leaded and lead-free) presents irregular topography due to the hot air leveling process.
- ENIG and ENEPIG provide highly planar surfaces and are preferred for HDI and advanced designs.
- OSP offers excellent planarity but with limitations in shelf life and number of thermal cycles.
Shelf life and storage
Storage time and conditions directly impact surface finish integrity. Factors such as humidity, environmental contamination, direct light exposure, and packaging type must be considered during the design phase.
- HASL, ENIG, and ENEPIG offer extended shelf life, suitable for long logistics chains or build-to-order production.
- OSP has limited shelf life and requires strict storage conditions.
- Immersion Silver is sensitive to humid and/or sulfur-rich environments.
- Immersion Tin is sensitive to humid and/or sulfur-rich environments and may present whisker growth risks.
Storage and handling recommendations are described in standards such as IPC-1601.
In addition to storage itself, environmental conditions and exposure time from storage removal to assembly start, as well as intervals between reflow processes, must also be considered.
Proper process control is essential to avoid that the PCB gets exposed to hostile or sulfur-rich environments, uncontrolled humidity and temperature conditions, or direct light exposure. Poor management of these factors can negatively affect solderability, especially for more sensitive finishes, increasing the risk of assembly defects.
PCB manufacturer and assembler capability
The PCB manufacturer’s process control is a determining factor in surface finish quality. Poor application may generate solderability issues even with technically suitable finishes. For this reason, NCAB has strict control requirements at each production stage and conducts regular audits to ensure compliance.
Likewise, the assembler’s experience and capability must be considered, particularly for special processes such as wire bonding, press-fit, or selective soldering. Understanding assembler preferences is therefore important.
Total product cost
Surface finish cost should not be evaluated in isolation. A lower-cost finish may lead to higher indirect costs due to rework, assembly failures, or reduced field reliability. On the other hand, using a high-cost finish as a standard may be unnecessary for simple applications, increasing PCB cost without added value. The choice should be based on total product cost, considering actual risks and requirements.
Main surface finishes
HASL / Lead-Free HASL
HASL (Hot Air Solder Leveling) is one of the most traditional and robust finishes. Estimated shelf life: 1 year.
Advantages:
- Low cost
- Excellent solderability
- Robust process
- Suitable for multiple soldering processes
Disadvantages:
- Non-coplanar surface
- Not suitable for BGA or fine pitch
- Subjected to high thermal stress during fabrication
Typical applications: Industrial PCBs, PTH component designs, low miniaturization level.

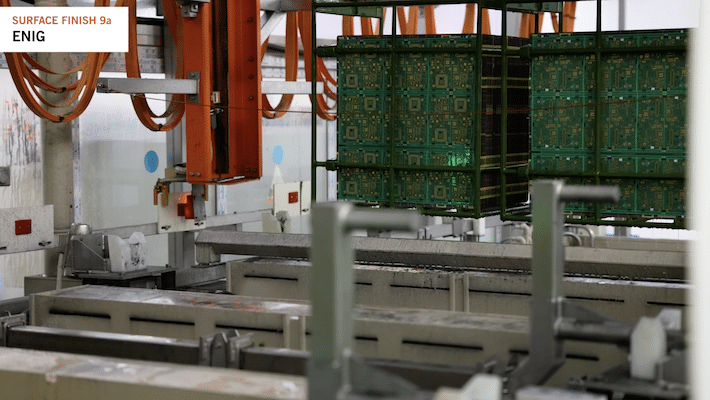

ENIG (Electroless Nickel Immersion Gold)
ENIG is one of the most widely used finishes in modern electronics. Estimated shelf life: 1 year.
Advantages:
- Excellent planarity
- Good shelf life
- Compatible with advanced packages
Disadvantages:
- Higher cost
- Risk of “black pad” if process control is inadequate
Typical applications: HDI, advanced consumer electronics, telecommunications.
OSP (IPC-4555)
OSP provides excellent initial solderability and low cost. It is a clean and environmentally friendly process. However, due to its organic nature, it is highly sensitive to storage, handling, and multiple reflow cycles, requiring strict process control. Estimated shelf life: 6 months.
Advantages:
- Very low cost
- Excellent planarity
- Environmentally friendly process
Disadvantages:
- Limited shelf life
- High sensitivity to multiple thermal cycles
- Handling sensitivity
- Requires strict time and condition control between assembly cycles
Typical applications: High-volume production with simple assembly processes.

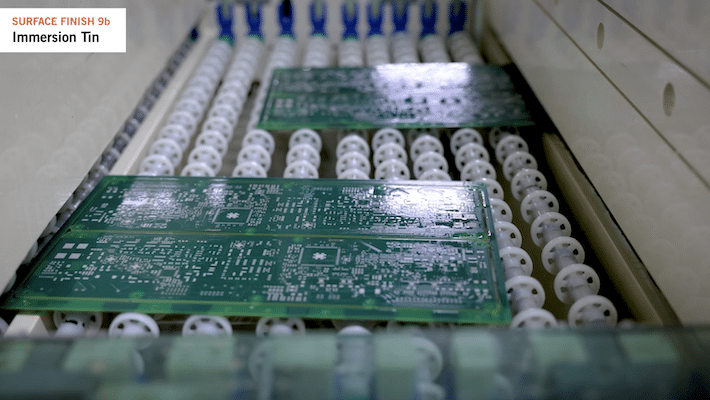

Immersion Tin
Immersion Tin provides good planarity and initial solderability but is sensitive to environmental conditions, uncontrolled handling, copper–tin intermetallic formation, and ages rapidly under thermal shocks during assembly. Estimated shelf life: 6 months.
Advantages:
- Good planarity
- Suitable for fine pitch
Disadvantages:
- Risk of whisker growth
- Sensitive to handling and storage
- Peelable masks cannot be used
- Incompatible with certain via plugging processes
- Sensitive to multiple soldering cycles
Typical applications: Specific applications under strictly controlled conditions.
Immersion Silver
Immersion Silver provides excellent initial solderability and very good flatness for fine-pitch and BGA components but is sensitive to environmental conditions and aging if storage is not properly controlled. Estimated shelf life: 6 months.
Advantages:
- Good planarity
- Good high-frequency performance
Disadvantages:
- Sensitive to handling and sulfur-rich environments
- Peelable masks cannot be used
- Incompatible with certain via plugging processes
- Sensitive to multiple soldering cycles
Typical applications: RF and high-speed applications under controlled conditions.
Hard Gold
Hard Gold is optimized for mechanical contact, wear, or connector applications such as PCI connectors or insertion areas. However, it has poor solderability and is not suitable for solder assembly areas. Estimated shelf life: 1 year.
Advantages:
- High wear resistance
- Excellent electrical stability
Disadvantages:
- Difficult to solder
- High cost
Typical applications: PCB connectors (PCI connectors), insertion or contact wear areas.
ENEPIG (IPC-4556)
ENEPIG is a high-performance surface finish combining excellent solderability and strong stability under multiple reflow cycles. It has limited market availability. Estimated shelf life: 1 year.
Advantages:
- Maximum reliability
- Excellent planarity
- Wire bonding compatible
- Excellent thermal cycle stability
- Contains palladium, which reduces nickel-related effects in high-speed or RF designs
Disadvantages:
- High cost
- Limited availability
- Slightly reduced wettability due to the nickel–palladium interface
Typical applications: Aerospace, defense, and high-performance RF.
EPIG (Electroless Palladium Immersion Gold)
EPIG is a nickel-free finish developed as an alternative to ENIG and ENEPIG where nickel must be avoided. It offers good stability under multiple reflow cycles, especially in high-frequency designs and certain wire bonding processes. Like ENEPIG, it has limited availability. Estimated shelf life: 1 year.
Advantages:
- Nickel-free, avoiding potential RF/microwave losses and discontinuities
- Wire bonding compatible
- Excellent planarity
- Good electrical behavior in high-frequency applications
Disadvantages:
- High cost
- Less available than standard finishes
- Limited gold thickness, not suitable for contact/wear areas
Typical applications: RF and microwave, high-frequency modules, specific wire bonding applications, and nickel-free design requirements.
Conclusions
Choosing the right surface finish is a strategic decision that should be based on objective technical criteria aligned with the product´s final application.
By considering factors such as design, assembly process, storage and total cost the risk is minimized and the reliability optimized.
Early collaboration with your PCB manufacturer will make it easier to select the most suitable finish, contributing to a more robust, reliable, and cost-effective final product.
