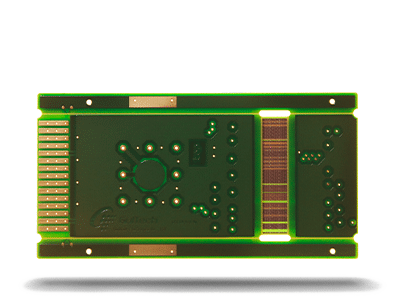

PCB semi-flexibles

En lo que se refiere a los PCB semi-flexibles, la oferta de que dispone NCAB es relativamente limitada, aunque hemos homologado una fábrica con probada capacidad para producir este tipo de tecnología.

No dude en ponerse en contacto con la oficina de NCAB más cercana para consultarnos. Estaremos encantados de atenderle.

Semi-Flex PCBs – Technical specification

FeatureNCAB´s technical specifcation
Number of layers1 – 12 layers, with 1 – 2 conductive layers in bending area.
Technology highlightsThe process uses controlled depth routing of the FR-4 to achieve a flexible / bending section within a traditionally rigid FR-4. Only suitable for static operations – bends typically just for installation. A lower cost solution for some very specific “flex-to-fit”applications.
Bending performance50 x bend cycles of 0° – 90° – 0°
Bend features5mm radius / max bending angle 90°
MaterialsSpecialized FR-4 for static flex applications
Copper weights (finished)35μm
Minimum track and gap0.075mm / 0.075mm
PCB thickness1.00mm – 2.00mm
PCB thickness in flex section0.25mm ± 0.05mm
Maxmimum dimensions538mm x 610mm
Surface finishes availableHASL (SnPb), LF HASL (SnNiCu), OSP, ENIG, Immersion tin, Immersion silver, Electrolytic gold, Gold fingers
Minimum mechanical drill0.20mm

Descargue nuestras guías de diseño de PCB semi-flexibles

Para evitar errar desde el principio, hemos recopilado nuestras guías de diseño para usarlas como lista de comprobación.
