PCB material selection is no longer just a mechanical choice. In today’s high-speed digital and RF designs, the choice of laminate directly affects electrical performance, manufacturability, and long-term reliability.
As data rates increase and operating frequencies move into the microwave and millimeter-wave range, material behavior becomes critical. The right choice can enable stable performance and predictable production. The wrong one can introduce loss, timing issues, and unnecessary risk.
These challenges are most visible in applications such as networking hardware, advanced telecommunications infrastructure, aerospace RF systems, automotive radar, and the rapidly expanding 5G and emerging 6G ecosystem.
Materials are no longer passive
For engineers working close to customers, understanding PCB material behavior is no longer optional. Modern laminates are not passive mechanical platforms; they are electrical components. Their properties can either enable system performance or limit it.
Effective material selection requires a structured approach, supported by verified data, repeatable test methods, and clear documentation aligned with IPC standards. Without this discipline, the gap between simulation and manufactured hardware increases, introducing unnecessary risk.
This article outlines the laminate characteristics that matter most in high-speed and high-frequency designs. It explains how dielectric behavior, conductor losses, thermal and mechanical properties, and manufacturing capability interact at system level. It also reviews common material families – such as Enhanced FR-4, PTFE, hydrocarbon and ceramic composites, and advanced high-speed laminates like Panasonic Megtron – and how they are qualified and documented using relevant IPC standards. (IPC-4101, IPC-4103, IPC-4562, IPC-6012, IPC-6018, and the IPC-2220 design series.)
Core electrical properties that define performance
Dielectric constant (Dk): velocity, timing and impedance stability
The dielectric constant determines how fast electromagnetic energy propagates through the substrate. Lower-Dk materials support higher signal velocity, reduce propagation delay, and improve timing alignment, which is critical for multi-lane serial interfaces and wide parallel buses.
Higher-Dk materials slow propagation and increase skew, especially when signals traverse multiple layers or mixed materials. Just as important as the absolute Dk value is its stability across frequency, temperature, and material orientation. At today’s data rates, digital signals contain frequency content well into the tens of gigahertz. Any Dk variation across this range can introduce timing dispersion, eye closure, and frequency-dependent distortion.
In practice:
- Enhanced FR-4 typically shows increasing Dk variation at higher frequencies, often limiting practical use to approximately 3–10 GHz, depending on grade.
- Hydrocarbon-ceramic composites provide tighter Dk control and predictable timing behavior up to 10–30 GHz and beyond.
- PTFE laminates and advanced materials such as Megtron 6 and 7 offer exceptional Dk stability, supporting 56G-PAM4, 112G-PAM4, and mmWave designs where phase and velocity accuracy are mandatory.
An often-overlooked aspect is dielectric anisotropy. Most modern laminates exhibit different Dk values in the x-y plane compared to the z-axis. Accurate modeling of microstrip, stripline, waveguide, and resonant structures therefore requires directional Dk data – not generic catalogue values.
Consistent test methodology is critical. Material properties should always reference the correct IPC-4101 or IPC-4103 slash sheet and be verified using IPC-TM-650 test methods. Inconsistent or mismatched data is a common root cause of simulation-to-hardware correlation issues.
Dissipation factor (Df): the real limiter of channel reach
If Dk defines signal velocity, dissipation factor defines loss. As frequencies increase, dielectric loss becomes a dominant limiter of channel length, eye opening, and signal-to-noise ratio, particularly for PAM4 modulation.
Higher Df increases insertion loss with both frequency and distance, reducing usable channel reach in backplanes and dense interconnects. In RF designs, elevated Df lowers Q-factor and radiation efficiency.
Material suppliers often specify Df at 1 GHz or 10 GHz. To make meaningful comparisons, engineers must ensure values are derived using identical IPC-TM-650 methods. Non-standard or proprietary test techniques can produce misleading results.
Accurate Df characterization is essential for realistic loss budgets and predictable performance.
Conductor losses: copper roughness and surface finish
Even with an optimized dielectric, conductor losses impose practical limits at high frequency. Skin effect forces current into a thin surface layer of copper, and surface roughness increases effective path length and resistance, raising attenuation.
Copper roughness directly impacts:
- achievable data rates
- maximum channel length
- RF insertion-loss slope
- phase noise and jitter
IPC-4562 defines copper foil classes such as standard electrodeposited (ED), very-low-profile (VLP), hyper-VLP (HVLP), and rolled-annealed (RA) copper. VLP and HVLP foils significantly reduce loss compared to standard ED copper. RA copper provides the smoothest surface and is commonly used in ultra-low-loss and flexible applications.
Surface finish also matters. Nickel-containing finishes such as ENIG introduce additional high-frequency loss due to nickel’s poor RF conductivity. OSP and immersion silver preserve smoother copper interfaces and typically support better high-speed performance.
Above approximately 2.4 GHz, or when interconnect lengths reach tens of centimeters, surface finish becomes a meaningful contributor to total loss.
Thermal and mechanical properties for long-term reliability
High-frequency systems often operate under elevated temperatures, thermal cycling, vibration, and environmental stress. Electrical performance must therefore be supported by appropriate thermal and mechanical behavior.
Key parameters include:
- glass transition temperature (Tg) for resin stability
- decomposition temperature (Td) for lead-free solder robustness
- coefficient of thermal expansion (CTE) to reduce via fatigue and barrel cracking
Hybrid stackups, particularly those combining FR-4 with PTFE or ceramic materials, require careful CTE alignment to avoid mechanical stress, timing drift, and delamination.
IPC-6012 (rigid PCBs) and IPC-6018 (RF/microwave PCBs) define performance and acceptance criteria. IPC-6018 is especially relevant for speed-critical designs, with tighter controls on dielectric uniformity and copper adhesion.

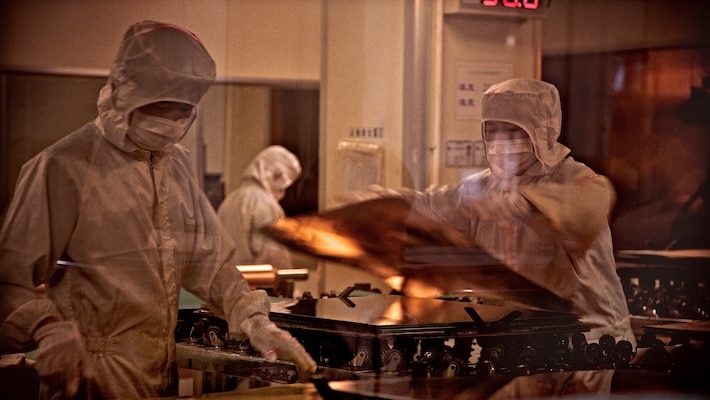

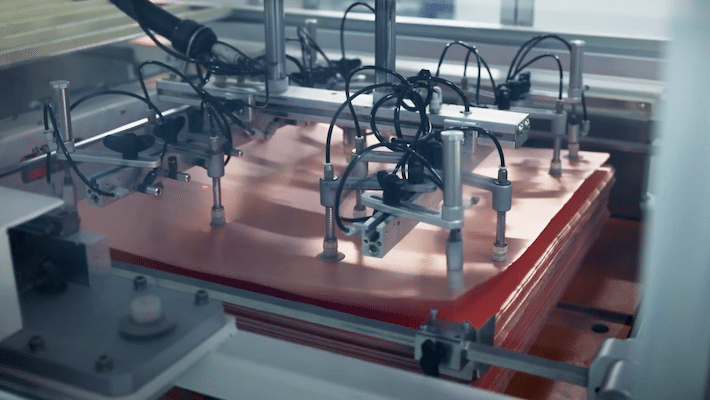

Manufacturing capability matters
Advanced materials often require non-standard fabrication processes. If a factory lacks experience with a specific laminate, performance may degrade due to voids, roughened copper, poor adhesion, or dimensional instability.
PTFE-based materials are particularly demanding and may require:
- plasma or sodium-etch surface treatment
- specialized drilling parameters
- modified desmear processes
- fusion bonding
Because fabrication directly affects dielectric and conductor structure, it also determines achievable circuit speed and signal quality. Early coordination with the PCB manufacturer is therefore essential to ensure that modeled performance can be realized in production.
IPC-2221 and IPC-2222 provide design-for-manufacturing guidance to help align stackups with process capability.

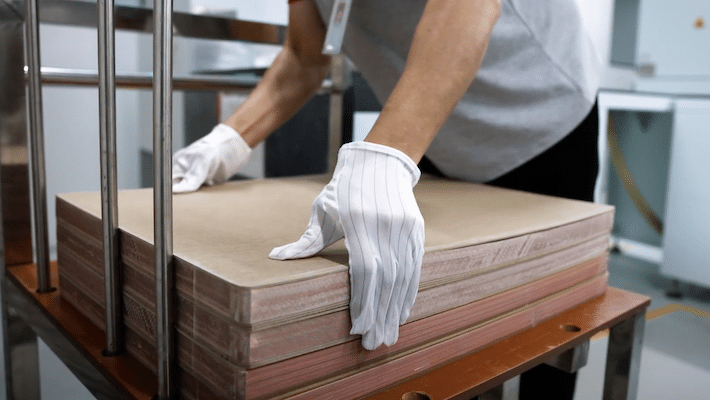

Common material families and typical use
- Enhanced FR-4
Improved Dk control, lower Df, and higher Tg than standard FR-4.
Typical use: up to ~2.5–10+ Gbps and RF below ~3–6 GHz. - PTFE-based laminates
Extremely low loss and stable Dk. Higher cost and processing complexity. Governed by IPC-4103.
Typical use: 30–110+ GHz RF, antennas, radar, ultra-high-speed digital.
When specifying high-frequency materials, particular caution is warranted with PTFE laminates that contain perfluoroalkyl and polyfluoroalkyl substances (PFAS). The European Chemicals Agency (ECHA) has proposed a broad restriction on many PFAS chemistries under REACH, which—if enacted—could significantly impact material availability and long-term supply continuity across multiple industries, including electronics manufacturing. Design teams should proactively assess material risk in current and future builds and consult with their PCB engineering resources to evaluate compliant laminate alternatives that meet electrical, thermal, and reliability requirements without exposing programs to avoidable regulatory or sourcing disruptions.
- Hydrocarbon and ceramic-filled composites
Balance low loss with improved manufacturability versus PTFE. Well-suited for hybrid stackups.
Typical use: 10–40 GHz RF and 10–56+ Gbps digital channels. - Panasonic Megtron
Designed for 25G, 56G, 112G and beyond. Low Df, strong thermal performance, compatible with conventional PCB processes.
Typical use: routers, switches, backplanes, HPC systems.
Caution should be exercised when specifying Megtron® laminates, particularly in applications subject to European regulatory oversight. Certain material formulations may contain DBDPE (Decabromodiphenyl ethane), which is classified as a Substance of Very High Concern (SVHC) under the European Chemicals Agency REACH Regulation framework. This designation is based on DBDPE’s very persistent and very bioaccumulative (vPvB) characteristics, which present long-term environmental risk. Engineers should verify material declarations and assess regulatory exposure early in the design phase to mitigate potential compliance and supply chain impacts.
Practical constraints: thickness, availability and trade-offs
Dielectric thickness affects impedance, propagation delay, attenuation, and routing density. Thicker dielectrics increase delay and loss; thinner dielectrics improve performance but may increase warpage or breakdown risk.
Material availability and panel size constraints often drive hybrid stackups. Aligning material choice with factory inventory reduces lead time and avoids unplanned substitutions that can alter electrical performance.

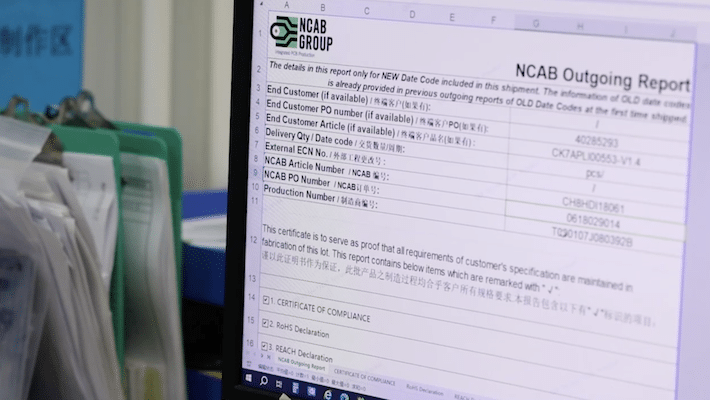

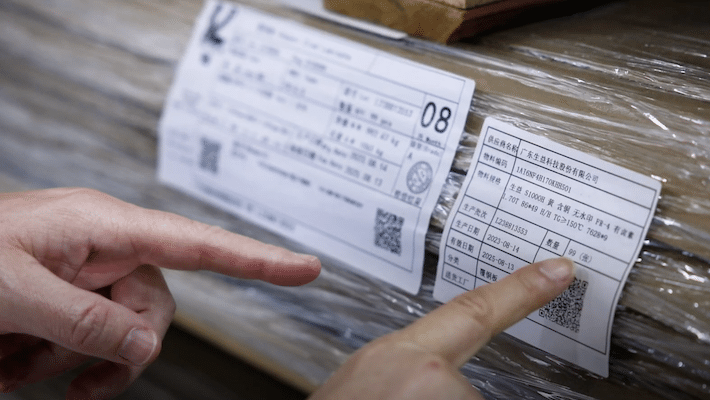

Documentation ensures consistency
Clear documentation is essential to prevent performance drift across builds and suppliers. Stackup documentation should explicitly define:
- IPC-4101 or IPC-4103 slash sheets
- dielectric thickness, resin content, target Dk/Df
- copper foil class per IPC-4562
- controlled-impedance requirements and IPC-TM-650 methods
- applicable acceptance standard (IPC-6012 or IPC-6018)
Any special handling, plasma treatment, drilling constraints, or lamination profiles must be clearly specified.
Why early collaboration matters
Early engagement with the PCB manufacturer reduces redesign cycles, prevents material mismatches, and accelerates time to production. Manufacturers can validate stackups, recommend stocked materials, confirm achievable impedance tolerances, and identify CTE or drilling risks before issues reach the end customer.
Final takeaway
In high-speed and RF designs, PCB material selection is a critical success factor. As frequencies rise and margins shrink, dielectric behavior, copper quality, surface finish, and manufacturing capability all influence performance and reliability.
By making informed material choices early, and working closely with an experienced PCB partner; it is possible to achieve predictable performance, stable production, and long-term reliability.
