Double sided PCBs

PCB Portfolio

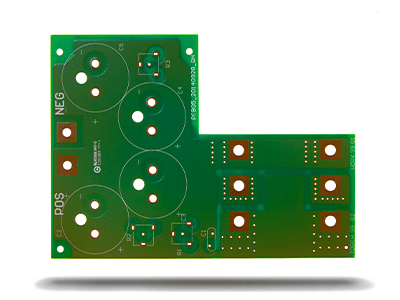

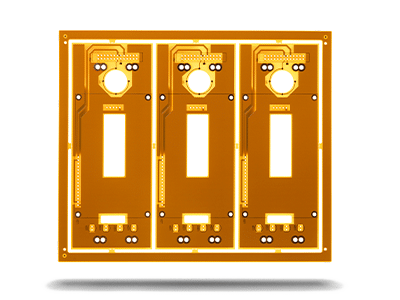

Double sided PCBs

Our product portfolio includes double sided PCBs for a wide range of applications from medical to industrial controls. This segment is decreasing as our customer’s demands for high layer count boards increases. However, we still produce large volumes with the same quality standards and expectations as our more advanced boards.

Please contact your local NCAB Group company if you need further information or assistance, we are happy to help you.

Double sided PCBs – Technical specification

FeatureNCAB´s technical specification
Number of layers2 layers
Technology highlightsEpoxy glass dielectric materials laminated with copper cladding of varying thicknesses.
MaterialsFR-4 standard, FR-4 high performance, FR-4 halogen-free.
Copper weights (finished)18μm – 210μm, advanced 1050μm / 30oz
Minimum track and gap0.10mm / 0.10mm
PCB thickness0.40mm – 3.2mm
Maxmimum dimensions510mm x 650mm
Surface finishes availableHASL (SnPb), LF HASL (SnNiCu), OSP, ENIG, Immersion tin, Immersion silver, Electrolytic gold, Gold fingers
Minimum mechanical drill 0.30mm standard, 0.20mm advanced
